Electric Metering

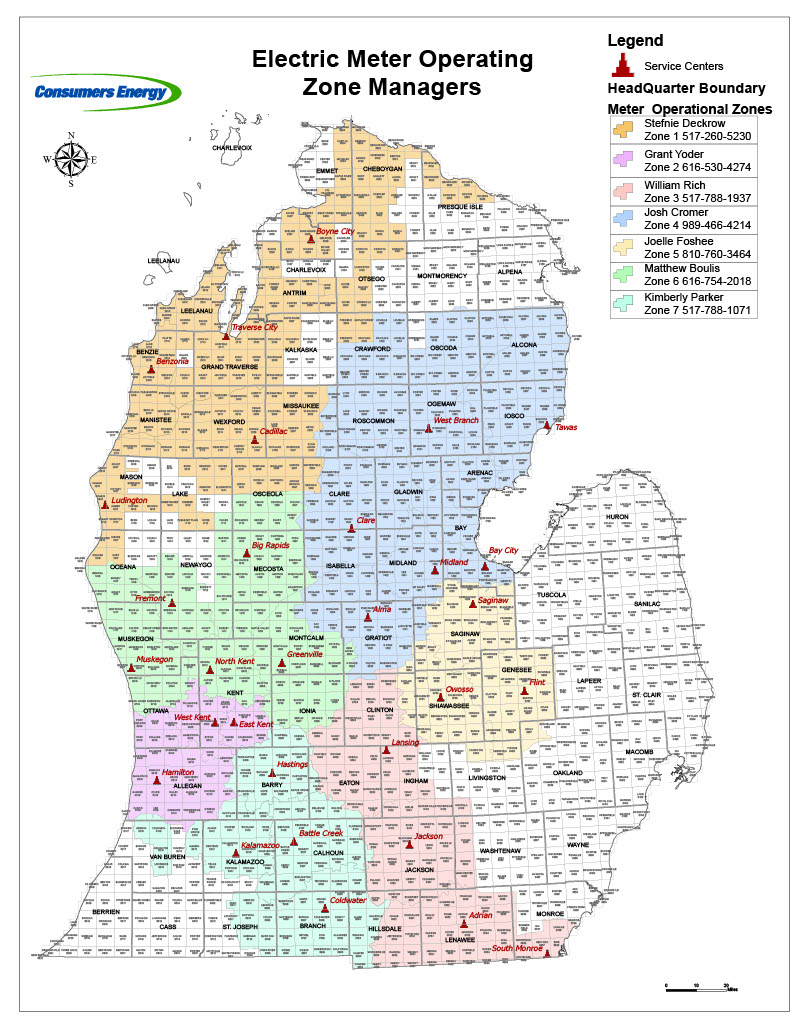

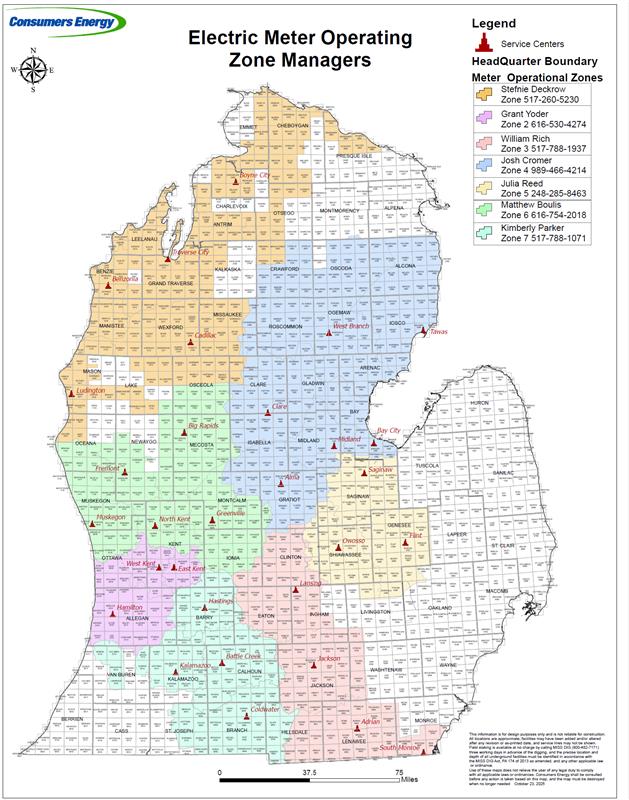

Electric Meter Operating Zone Managers Contacts:

Zone 1: Cadillac, Benzonia, Traverse City, Boyne City, Ludington
Stefnie Deckrow
Phone Number: 517-260-5230

Zone 2: Hamilton, West Kent, East Kent
Grant Yoder
Phone Number: 760-687-3235

Zone 3: Jackson, Adrian, Lansing, South Monroe
William Rich
Phone Number: 517-788-1937

Zone 4: Alma, Midland, Bay City, Clare, West Branch, Tawas
Josh Cromer
Phone Number: 989-466-4214

Zone 5: Saginaw, Owosso, Flint
Joelle Foshee
Phone Number: 810-760-3464

Zone 6: Fremont, Muskegon, Big Rapids, North Kent, Greenville
Matthew Boulis
Phone Number: 616-754-2018

Zone 7: Hastings, Battle Creek, Kalamazoo, Coldwater
Kimberly Parker
Phone Number: 517-788-1071

Frequently Asked Questions

Who do I contact?

To start the process of applying for new service or upgrading an existing service, submit an online request via our start/stop service function or call our toll free number at 1-800-477-5050.

When calling the toll free number the Customer Service Representative will assist with initiating a “Request for Service” and will direct the call to the Energy Request Center (ERC). The ERC will work with the customer to complete preliminary scoping and will assign a Project Coordinator or Tech depending on the scope of the job. The Project Coordiantor/Tech will contact the customer back to review scope and will be able to assist with meter socket and metering equipment needs.

When is it time to upgrade my existing electric meter socket?

If you are increasing load, you should consider whether your meter socket is rated to handle it. If you have an older 60-amp service and meter socket and you are upgrading your service, you should install a new meter socket (a minimum of 100 amp service and socket are required). If your meter socket has signs of wear or overheating, you should contact a qualified, licensed electrical contractor.

What are the different types of meter sockets?

There are many different types of sockets that Consumers Energy requires for different applications. Here is a simple breakdown:

Number of meter positions:

Single Position	Two Position		Three or More Position
There are single-position sockets for a single meter. Consumers Energy will furnish the single-position sockets.	There are multiple-position sockets for two or more meters in a grouped installation. Consumers Energy will furnish the two-position, horizontal style sockets.		If a three- or more position socket is needed, the customer or electrical contractor must purchase a socket that is listed on Consumers Energy ‘s approved list*.
Socket Ampere Ratings:		Types of Sockets:
100 Amp- for up to a 100 amp service 200 Amp- for up to a 200 amp service 400 Amp- for up to a 400 amp service Over 400 Amp requires specialized ITR metering equipment		Residential Commercial Single-phase Three-phase (Poly-phase) Self-Contained Instrument Transformer Rated (ITR)

Single Phase – One Position Meter Sockets
Ampere Rating	Service Entrance into Socket	Service Application	Voltage	Wire	Sockets Are Obtained From:	CE Stock Number
100 A	Overhead	Residential	120/240v	three	Consumers Energy	10029602
200 A	Overhead	Residential	120/240v	three	Consumers Energy	10029607
200 A	Underground	Residential	120/240v	three	Consumers Energy	10029611
320 A	Overhead/Underground	Res/Comm	120/240v	three	Consumers Energy	10029699

Single Phase – Multiple Position Meter Sockets
Ampere Rating Per Meter Position	Service Entrance into Socket	Service Application	Voltage	Wire	# Of Meter Positions	Sockets Obtained From
200 A	Overhead/Underground	Res/Comm	120/240v	three	two	Consumers Energy 10029699
200 A	Overhead/Underground	Res/Comm	120/240v	three	three or more*	Retail Distributor
*As of January 1, 2005, Consumers Energy will no longer furnish the three-, four-, five-, or six-position sockets. For a three- or more position meter socket, the customer will be required to purchase the approved socket. For more information, see Customer Purchased Meter Sockets.

Three Phase – One Position Meter Sockets
Ampere Rating	Service Entrance into Socket	Service Application	Voltage	Wire	Sockets Are Obtained From:	Stock Number
200 A	Overhead/Underground	Commercial	120/208Y, 277/480Y, 120/240D	four	Consumers Energy	10029698
320 A	Overhead/Underground	Commercial	120/208Y, 277/480Y, 120/240D	four	Consumers Energy	10029719

Three Phase – Multiple Position Meter Sockets
Ampere Rating per Meter Position	Service Entrance into Socket	Service Application	Voltage	Wire	# Of Meter Positions	Sockets Obtained From
200 A	Overhead/Underground	Commercial	120/208Y, 277/480Y, 120/240D	four	two	Consumers Energy 10029777
200 A	Overhead/Underground	Commercial	120/208Y, 277/480Y, 120/240D	four	three or more*	Retail Distributor
*As of January 1, 2005, Consumers Energy will not furnish the three-, four-, five-, or six-position sockets. For a three- or more position meter socket, the customer will be required to purchase the approved socket. For more information, see Customer Purchased Meter Sockets.

Instrument Transformer Rated Sockets & Equipment

ITR metering equipment involving a current transformer (CT) cabinet shall be mounted by the contractor along with the ITR meter socket. Consumers Energy designates and furnishes the necessary equipment.

Need to request new electric service, or upgrade existing service? Call and we’ll walk you through the process.
